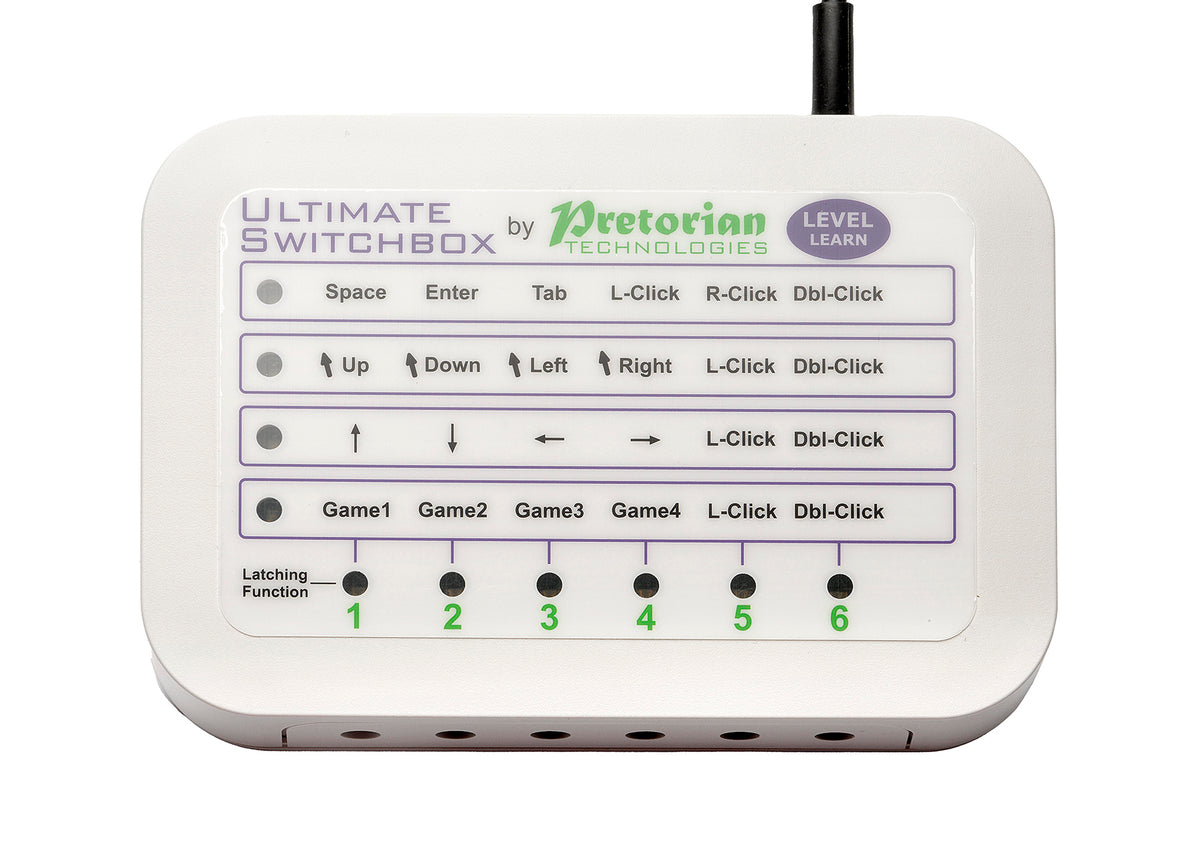

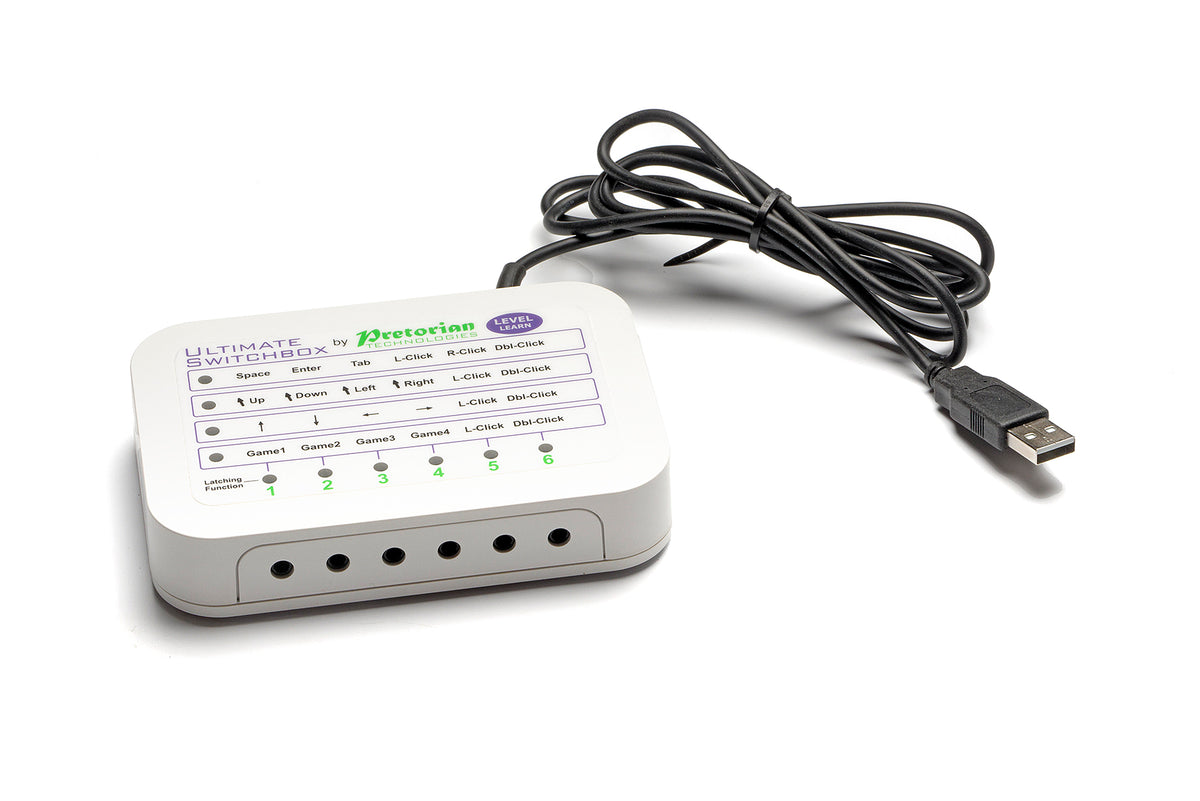

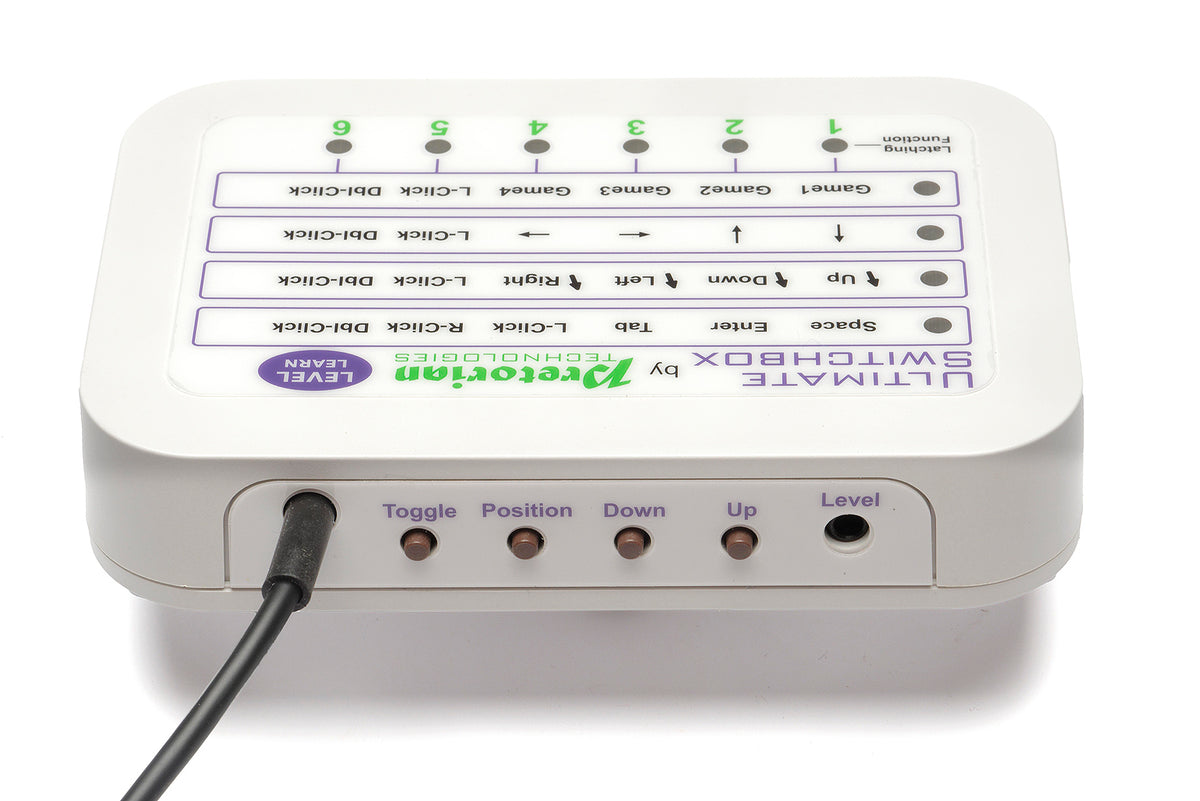

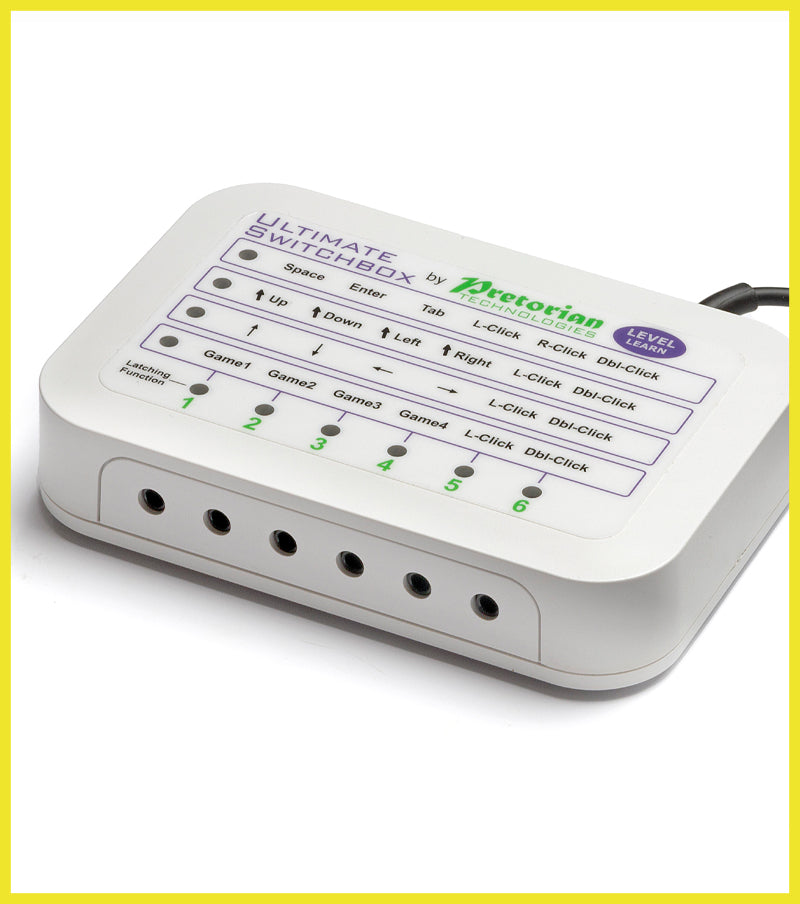

Ultimate Switchbox

Ultimate Switchbox is a highly flexible USB switch interface for use with up to 6 assistive switches. The switch functions are set by selecting one of four Levels. Each socket on every Level is completely programmable to any one of over a hundred settings, which encompasses all keyboard keystrokes as well as a suite of mouse and gamepad functions.

A seventh socket is dedicated to changing Level so the user can navigate between Levels without requiring assistance. Alternatively, this may be achieved using a button on the fascia of Ultimate Switchbox.

The unit ships with carefully selected default settings assigned to each of the sockets on every Level, meaning that in many cases, no configuration is required. If the settings need to be changed, simply go into Learn Mode and set each one in turn according to your exact requirements. Once changed, they are saved in internal memory and automatically recalled, even when taking the unit from device to device. As with all Pretorian products, Ultimate Switchbox requires no drivers- simply plug and play!

Four macros can be configured to give sequences of up to four keystrokes and these can be assigned to any socket on any Level.

Any keyboard keystroke can be configured to have one or more ‘modifier keys’ assigned to it such as Shift, Control or Alt. Most functions can optionally be made to be latching. This level of versatility can be especially useful when programming a switch box to access software that is not primarily designed for disabled access (i.e. not switch adapted).

Left click, right click, double click and drag mouse functions can also be configured together with up, down, left and right cursor movement at one of three cursor speeds. Four gamepad button settings are also available.

Features

• Designed to allow ANY keystroke to be configured.
• Modifier keys can be added to any keystroke.
• Includes keyboard, mouse and gamepad settings.
• Carefully selected default settings mean that in many cases no configuration is required.
• Simple or Advanced configuration.
• Four Levels, selectable using a dedicated switch or integral button.
• Six 3.5mm jack socket inputs allow any style of switch to be used.
• Seventh 3.5mm socket to allow Level to be selected by user.
• Easy 'plug and play' installation, does not require driver software.
