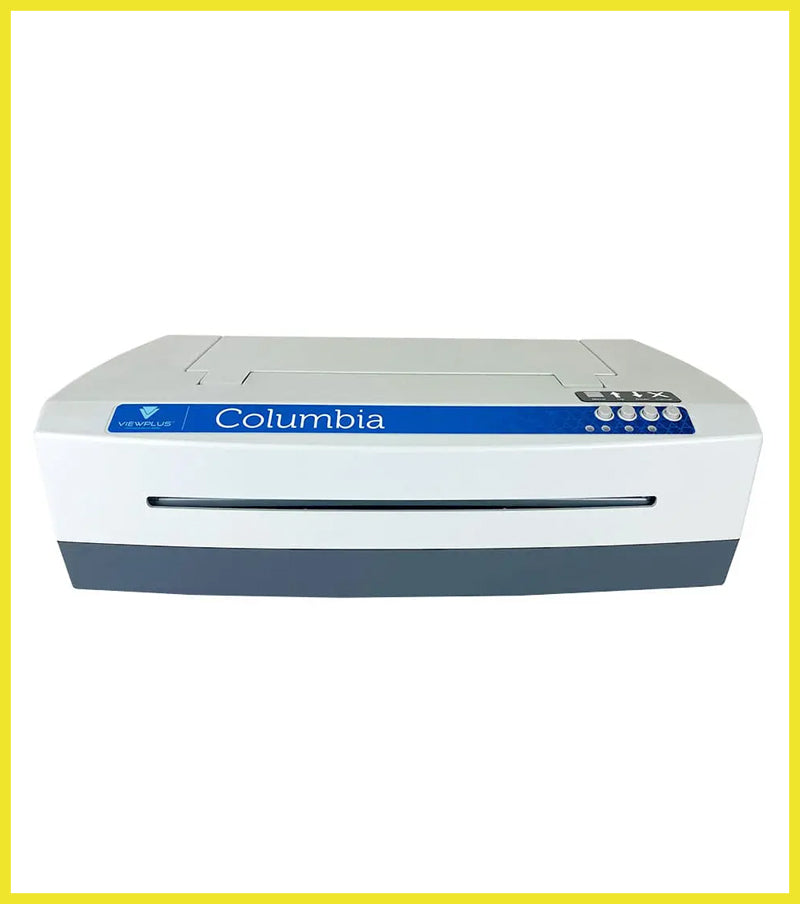

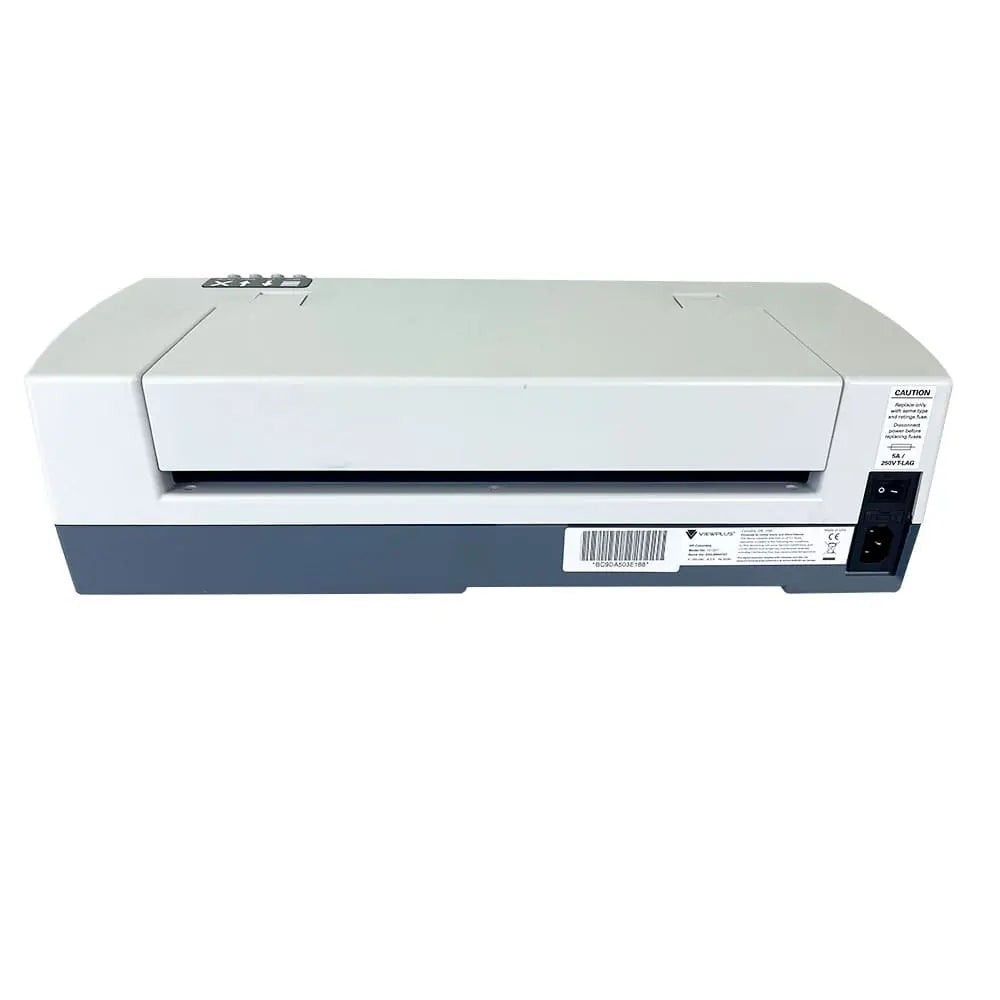

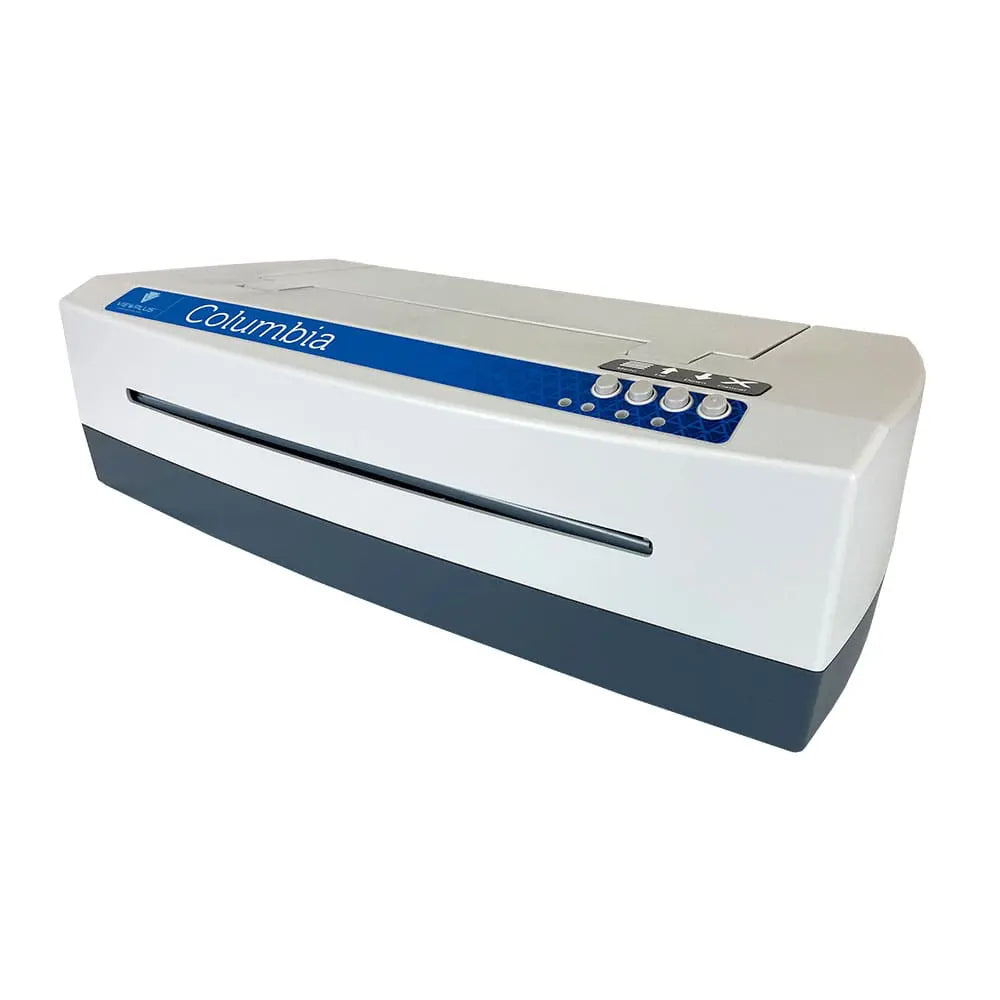

VP Columbia 2 (Tiger Software Suite Included)

  • $4,565.00


Get Braille & Tactile Graphics in One Embosser

  • Speed: 120 characters/second double-sided embossing
  • Braille Dot: Power-Dot braille for the most readable braille dot
  • Tactile Graphics: 8 different dot heights for highest-resolution graphics
  • Paper-Feed: Tractor feed paper up to 12″ wide
  • Connectivity: Ethernet and USB connectivity
  • Software: Tiger Software Suite included
  • Also compatible with Duxbury, TSS & other mainstream braille software
  • Systems: Works with Windows and MAC

Power-Dot Braille
Power-Dot Braille makes the strongest, most tactile braille dots available from any desktop braille embosser but still maintains a pleasing rounded dot shape. For the first time, it is possible to have production-quality braille on a desktop embosser.

High-Resolution Tactile Graphics
The VP Columbia offers high-resolution tactile graphics. With 8 different distinctive dot heights users can transform images into readable tactile graphics. The dot height is automatically adjusted based on the visual color of the image. The darker the color the higher the dot and the lighter the color the lower the dot making it easy for users of all skill levels to make custom tactile graphics.

The eight different dot heights also allow you to add more details to images and diagrams. You can easily make a map more readable by filling the interior state or country with a low dot height or pattern while leaving lakes or bodies of water with no fill for enhanced readability.

Better yet, you can use any type of graphics software to do the customization. Use standard graphics software such as the Adobe Design Suite or CorelDraw or use popular tactile graphics software such as TactileView, Tiger Designer or Quicktac to do dot-by-dot editing or add braille and math labels too!

Specifications

Embossing
Draft speed: Up to 160 CPS
Braille speed: Up to 120 CPS
Printing Mode: Double-sided
Tactile Resolution: 100 DPI
Tactile Graphic Dot Heights: 7 steps for color representation
Braille Dot Heights: Adjustable in 3 heights

Paper
Paper Width: 7 – 12 inches (176 – 292 mm)
Paper: Continuous Tractor-Fed
Paper Weight: 33 – 120 lb (90 – 200 gsm)

Connection/Compatibility
Connection: USB (1.1, 2.0), Ethernet
Compatibility: Windows 7, 8/8.1, 10, Mac

Dimensions/Weight
Height: 6.2 in (158 mm)
Width: 21.9 in (557 mm)
Depth: 10.8 in (275 mm)
Weight: 19.8 lbs (9 kg)

Temperature/Humidity
Recommended Temperature: 59 – 95 °F (15 – 35 °C)
Storage Temperature: -4 – 158 °F (-40 – 70 °C)
Humidity: 20 – 80% RH (non-condensing)

Power Supply
85 – 264 VAC
50/60 Hz (+/- 3%)
Standby: 20 W
Heavy Embossing: 200 W
Noise Level: 70 db(A)
